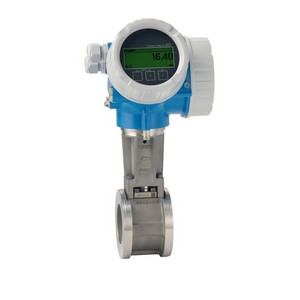

Proline Prowirl D 200 Vortex flowmeter

​优势 Integrated temperature measurement for mass/energy flow of saturated steam Easy alignment of the sensor included centering rings High availability proven robustness resistance to vibrations temperature shocks water hammer Long-term

用途 : Cost-effective wafer flowmeter available as compact or remote version The Prowirl D sensor can be installed directly between flanges and thus serves as the functional device for applications in ancillary processes at little installation cost. With genuine loop-powered technology Prowirl D 200 enables cost-effective and seamless integration into existing infrastructures. It offers highest operational safety in hazardous areas. Heartbeat Technology ensures process safety at all times.
特点 : Integrated temperature measurement for mass/energy flow of saturated steam Easy alignment of the sensor – included centering rings High availability – proven robustness resistance to vibrations temperature shocks & water hammer Long-term stability – robust drift-free capacitive sensor Convenient device wiring – separate connection compartment Safe operation – no need to open the device due to display with touch control background lighting Integrated verification – Heartbeat Technology

  • 优势

    • Integrated temperature measurement for mass/energy flow of saturated steam

    • Easy alignment of the sensor – included centering rings

    • High availability – proven robustness, resistance to vibrations, temperature shocks & water hammer

    • Long-term stability – robust drift-free capacitive sensor

    • Convenient device wiring – separate connection compartment

    • Safe operation – no need to open the device due to display with touch control, background lighting

    • Integrated verification – Heartbeat Technology

  • 应用领域

    • Preferred measuring principle for wet/saturated/superheated steam, gases & liquids (also cryogenic)

    • For all basic applications and for 1-to-1 replacement of orifice plates.

    Device properties

    • Face-to-face length of 65 mm (2.56 in)

    • No flanges

    • Low weight

    • Display module with data transfer function

    • Robust dual-compartment housing

    • Plant safety: worldwide approvals (SIL, Haz. area)

特征和规格

  • 测量原理

    涡街

  • 产品标题

    Cost-effective wafer flowmeter, available as compact or remote version. Integrated temperature measurement for mass/energy flow of saturated steam. For all basic applications and for 1-to-1 replacement of orifice plates.

  • 传感器特点

    Easy alignment of the sensor – included centering rings. High availability – proven robustness, resistance to vibrations, temperature shocks & water hammer. Long-term stability – robust drift-free capacitive sensor. Face-to-face length of 65 mm (2.56 in). No flanges.

  • 变送器特点

    Convenient device wiring – separate connection compartment. Safe operation – no need to open the device due to display with touch control, background lighting. Integrated verification – Heartbeat Technology. Display module with data transfer function. Robust dual-compartment housing.

  • 公称口径范围

    DN 15 to 150 (½ to 6")

  • 接液部件材质

    Measuring tube: 1.4408 (C3FM)
    DSC sensor: 1.4435 (316/316L)

  • 测量变量

    Volume flow, mass flow, corrected volume flow, energy flow, heat flow difference, temperature

  • 最大测量误差

    Volume flow (liquid): ±0.75 %
    Volume flow (steam, gas): ±1.00 %
    Mass flow (liquid): ±0.85%
    Mass flow (steam, gas): ±1.7 %

  • 测量范围

    Liquid: 0.16 to 625 m³/h (0.09 to 368 ft³/min)
    depending on medium: water with 1 bar a, 20 °C (14.5 psi a, 68° F)
    Steam, gas: 2 to 8342 m³/h (1.18 to 4910 ft³/min)
    depending on medium: steam with 180 °C, 10 bar a (356 °F, 145 psi a); air with 25 °C, 4.4 bar a (77 °F, 63.8 psi a)

  • 最大过程压力

    PN 40, Class 300, 20K

  • 介质温度范围

    Standard: –40 to +260 °C (–40 to +500 °F)
    High/low temperature (option): –200 to +400 °C (–328 to +752 °F)
    High/low temperature (on request): –200 to +450 °C (–328 to +842 °F)

  • 环境温度范围

    Compact version (standard): –40 to +80 °C (–40 to +176 °F)
    Compact version (option): –50 to +80 °C (–58 to +176 °F)
    Remote version (standard): –40 to +85 °C (–40 to +185 °F)
    Remote version (option): –50 to +85 °C (–58 to +185 °F)

  • 传感器外壳材质

    Sensor connection housing: AlSi10Mg, coated; 1.4408 (CF3M)

  • 变送器外壳材质

    AlSi10Mg, coated; 1.4404 (316L)

  • 防护等级

    Compact version: IP66/67, type 4X enclosure
    Sensor remote version: IP66/67, type 4X enclosure
    Transmitter remote version: IP66/67, type 4X enclosure

  • 显示/操作

    4‐line backlit display with touch control (operation from outside)
    Configuration via local display and operating tools possible
    Remote display available

  • 输出

    4‐20 mA HART (passive)
    4‐20 mA (passive)
    Pulse/frequency/switch output (passive)

  • 输入

    Current input 4‐20 mA (passive)

  • 数字通信

    HART, PROFIBUS PA, FOUNDATION Fieldbus

  • 电源

    DC 12 to 35 V (4‐20 mA HART with/without pulse/frequency/switch output)
    DC 12 to 30 V (4‐20 mA HART, 4‐20 mA)
    DC 12 to 35 V (4‐20 mA HART, pulse/frequency/switch output, 4‐20 mA input)
    DC 9 to 32 V (PROFIBUS PA, pulse/frequency/switch output)

  • 防爆认证

    ATEX, IECEx, cCSAus, JPN, EAC

  • 产品安全性

    CE, C-TICK, EAC

  • 功能安全性

    Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

  • 计量认证和证书

    Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
    Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV attestation)

  • 船级认证和证书

    ABS, LR, BV

  • 压力认证和证书

    PED, CRN

  • 材料证书

    3.1 material
    NACE MR0175/MR0103, PMI (on request)
